Product Overview:

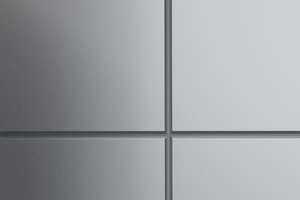

Aluminum Plate Panels are made from solid aluminum. This paneling system is sustainable, reliable and fire-resistant. Panels are available in numerous colors and finishes and are the material of choice for flat cladding systems.
Quick Links:
3mm Aluminum Plate Panels Toronto | Non-Combustible Solid Aluminum Cladding
3mm aluminum plate panels are a premium architectural cladding solution fabricated from solid heavy-gauge aluminum sheets, designed for projects that require durability, precision, and a non-combustible exterior façade system.
Unlike Aluminum Composite Panels (ACM), which contain a core material, aluminum plate panels are manufactured from a single solid aluminum sheet, offering enhanced structural integrity, impact resistance, and long-term performance.
Aluminum plate is a non-combustible cladding material, making it a preferred solution for commercial, institutional, and high-rise projects where fire performance is a critical design consideration. Final code compliance depends on the complete wall assembly, including substructure, insulation, and air/water barrier integration.
At CLADDERS™, we provide design-assist, fabrication, and installation of aluminum plate panel systems across Toronto and Ontario, delivering high-performance façade solutions tailored to each project.
What Are 3mm Aluminum Plate Panels?
3mm aluminum plate panels (1/8″ thickness) are fabricated from solid aluminum sheets and formed into panelized façade components such as cassette panels, flat panels, soffits, fascias, column covers, and custom architectural elements.
These panels are typically installed as part of a drained and back-ventilated rainscreen cladding system, improving moisture control, air circulation, and overall building envelope performance.
Compared to light-gauge metal siding systems, aluminum plate panels provide:
- higher rigidity and dimensional stability
- cleaner panel alignment and visual flatness
- improved durability under environmental exposure
- greater flexibility for custom architectural detailing
Fabrication Methods for Aluminum Plate Panels (Why It Matters)
Fabrication quality is one of the most important factors affecting the performance and appearance of aluminum plate panels.
Common Industry Fabrication Methods
1) Back-Routed (V-Grooved) Folded Returns
This method involves routing a groove from the back of the panel to create tight folds. While it allows for sharp edges, it removes material at the bend line, creating a reduced section at the fold.
2) Formed Full-Thickness Returns
This approach uses controlled bending to form the panel without removing material, maintaining greater continuity of the aluminum through the bend.
Our Fabrication Approach
At CLADDERS™, we prioritize formed full-thickness return fabrication for high-quality aluminum plate systems. This approach is selected to improve:
- edge integrity and crispness
- dimensional stability
- resistance to deformation during handling
- long-term durability at corners and folds
- consistency of finish at panel edges
The result is a more robust and refined architectural panel system.
Architectural Coating Systems for Aluminum Plate Panels (AAMA 2604 / 2605 / PVDF)
The performance of aluminum plate panels is directly influenced by the coating system. We offer multiple finish levels to match project requirements, exposure conditions, and budget.
Level 1 — High-Performance Powder Coating (AAMA 2604)
A cost-effective exterior coating with good durability and weather resistance, suitable for many commercial applications.
Level 2 — Premium Architectural Powder Coating (AAMA 2605)
Advanced powder coating systems engineered for enhanced UV resistance, improved color retention, and superior long-term performance in demanding environments.
Level 3 — Fluoropolymer PVDF Coatings (Kynar 500® / Duranar®)
Top-tier architectural finishes using 70% PVDF resin technology, providing maximum durability, fade resistance, and long-term color stability. Ideal for high-visibility façades and harsh climates.
Advantages of 3mm Aluminum Plate Panels for Exterior Cladding
- Solid aluminum construction with no combustible core
- Non-combustible cladding material suitable for fire-sensitive projects
- High rigidity and dimensional stability for premium façade appearance
- Compatible with rainscreen cladding systems
- Custom fabrication for complex geometries and architectural details
- Superior durability against weather, impact, and environmental exposure
- Wide range of architectural finishes, colors, and textures
- Long-term performance with minimal maintenance
Applications of Aluminum Plate Panels in Commercial & Architectural Projects
3mm aluminum plate panels are widely used in:
- high-rise residential and commercial buildings
- office and institutional projects
- podium façades and feature elevations
- soffits, fascias, and canopy cladding
- column covers and architectural elements
- retail storefronts and branded environments
- retrofit and over-cladding projects
- projects with elevated fire safety requirements
Aluminum Plate Panels vs ACM Panels (ACP) – Key Differences
Aluminum Composite Panels (ACM/ACP) are commonly used for cost-sensitive projects due to their lighter weight and lower fabrication cost.
3mm aluminum plate panels, however, offer:
- solid metal construction (no core material)
- non-combustible material properties
- higher impact resistance and durability
- improved long-term performance
- better suitability for high-end architectural applications
For projects where performance, longevity, and fire safety are priorities, aluminum plate panels are the superior solution.
Aluminum Plate Rainscreen System Design Considerations
The performance of aluminum plate panels depends on proper system design and integration within the building envelope.
Key considerations include:
- substructure and support framing systems
- thermal expansion and movement joints
- air and water barrier continuity
- cavity depth and ventilation
- flashing and drainage detailing
- panel sizing and joint layout
- compatibility with insulation systems
At CLADDERS™, we provide design-assist and constructability review to ensure every aluminum plate cladding system is properly detailed for long-term performance.
Why Choose CLADDERS™ for Aluminum Plate Panels in Toronto
We approach aluminum plate panels as a precision-engineered façade system, not just a cladding product.
Our services include:
- design-assist and value engineering
- panel layout optimization
- fabrication strategy selection
- finish specification guidance
- shop drawing coordination
- supply and professional installation across Ontario
We work with architects, builders, and developers to deliver façade systems that meet both design intent and performance requirements.
Frequently Asked Questions; Aluminum Plate panels
Are 3mm aluminum plate panels non-combustible? Yes. Solid aluminum plate is considered a non-combustible cladding material because it does not contain a combustible core.
However, building code compliance is based on the entire wall assembly, including substructure, insulation, air/vapour barrier, and attachments. The panel itself is non-combustible, but final compliance depends on the full system design.
What is the difference between aluminum plate panels and ACM panels? Aluminum plate panels are fabricated from solid aluminum sheets, while ACM (Aluminum Composite Material) panels consist of thin aluminum skins bonded to a core.
Key differences:
- Aluminum Plate:
- Solid metal construction
- Non-combustible material
- Higher durability and impact resistance
- ACM Panels:
- Lightweight and more economical
- Easier to fabricate
- Typically used in cost-sensitive projects
For projects where fire performance, robustness, and longevity are priorities, aluminum plate panels are the preferred solution.
Why are 3mm aluminum plate panels commonly used? 3mm (1/8") thickness provides the ideal balance between:
- structural rigidity
- workability for fabrication
- weight efficiency
- cost control
It is the most commonly specified thickness for architectural façade applications.
What fabrication methods are used for aluminum plate panels? There are two common fabrication approaches:
- Back-routed (V-grooved) folding, where material is removed from the back to create tight bends
- Formed full-thickness bending, where the panel is bent without removing material
Higher-quality fabrication typically prioritizes material continuity at the bend, which improves durability, edge integrity, and long-term performance.
What is the best coating system for aluminum plate panels? The best coating depends on the project’s exposure and performance requirements:
- AAMA 2604 Powder Coating – good performance for standard exterior use
- AAMA 2605 Powder Coating – enhanced UV resistance and durability
- PVDF (Kynar 500® / Duranar®) – premium finish with superior color retention and long-term performance
For high-end or highly exposed façades, AAMA 2605 / PVDF coatings are typically recommended.
What is the difference between AAMA 2604 and AAMA 2605? AAMA 2605 is the highest performance architectural coating standard, offering:
- superior UV resistance
- better color retention
- higher corrosion resistance
- longer service life
AAMA 2604 is still a high-performance option but is typically used where exposure conditions are less demanding.
Are aluminum plate panels suitable for rainscreen systems? Yes. Aluminum plate panels are commonly used in drained and back-ventilated rainscreen cladding systems.
These systems improve:
- moisture management
- durability of the wall assembly
- thermal performance
- long-term building envelope reliability
Can aluminum plate panels be used for curved or custom shapes? Yes. Aluminum plate is highly formable and can be fabricated into:
- curved panels
- column covers
- soffits and canopies
- custom façade geometries
This makes it an excellent choice for architectural feature elements and complex designs.
What are typical applications of aluminum plate panels? Aluminum plate panels are widely used in:
- commercial and office buildings
- high-rise residential projects
- institutional buildings
- retail and storefront façades
- canopies, soffits, and columns
- retrofit and over-cladding projects
They are especially suitable for projects requiring non-combustible exterior cladding.
Are aluminum plate panels heavier than ACM panels? Yes. Aluminum plate panels are heavier than ACM panels because they are made from solid aluminum.
However, they are still manageable within standard façade systems when properly designed with appropriate substructure and support systems.
Do aluminum plate panels require maintenance? Aluminum plate panels require minimal maintenance.
Periodic cleaning is typically sufficient to maintain appearance. High-performance coatings such as PVDF offer excellent resistance to fading, chalking, and corrosion, reducing long-term maintenance requirements.
Are aluminum plate panels environmentally friendly? Yes. Aluminum is 100% recyclable and can be reused without loss of performance.
This makes aluminum plate panels a strong option for:
- sustainable building design
- LEED-oriented projects
- long-life, low-maintenance façade systems
How do aluminum plate panels perform in Canadian weather? Aluminum plate panels perform very well in harsh climates like Ontario, including:
- freeze-thaw cycles
- UV exposure
- moisture and precipitation
- temperature fluctuations
Proper system design (movement joints, substructure, ventilation) ensures long-term performance in these conditions.
What should be considered when designing an aluminum plate panel system? Key design considerations include:
- panel size and layout
- thermal expansion and movement
- substructure and attachment system
- air/water barrier integration
- ventilation cavity
- flashing and drainage
Working with an experienced contractor ensures the system is properly detailed and performs as intended.
Do you provide design and installation services in Toronto? Yes. CLADDERS™ provides:
- design-assist and value engineering
- fabrication and shop drawings
- finish specification guidance
- supply and professional installation
We serve Toronto, the GTA, and across Ontario, supporting architects, builders, and developers with complete cladding solutions.
What is the cost of aluminum plate panels in Toronto? The cost of 3mm aluminum plate panels in Toronto varies depending on several project-specific factors, including:
- panel size and complexity
- fabrication method and detailing
- coating system (powder coating vs PVDF)
- substructure and installation requirements
- site conditions and access
In general, aluminum plate panels are more expensive than ACM panels due to the use of solid material and more complex fabrication. However, they offer superior durability, non-combustibility, and long-term performance.
For accurate pricing, it is best to review drawings and project scope. At CLADDERS™, we provide detailed estimates and value engineering options to align with your budget.
What is the lead time for aluminum plate panel fabrication? Lead time for aluminum plate panels typically ranges from 4 to 8 weeks, depending on:
- project size and quantity
- fabrication complexity
- finish selection and coating process
- shop drawing approval timeline
Projects requiring custom fabrication, premium finishes (such as PVDF), or complex geometries may require additional time.
To avoid delays, it is recommended to engage early for design-assist, shop drawings, and material coordination. CLADDERS™ works closely with clients to streamline the process and meet project schedules.
Frequently Asked Questions; Aluminum Plate panels
Yes. Solid aluminum plate is considered a non-combustible cladding material because it does not contain a combustible core.
However, building code compliance is based on the entire wall assembly, including substructure, insulation, air/vapour barrier, and attachments. The panel itself is non-combustible, but final compliance depends on the full system design.
Aluminum plate panels are fabricated from solid aluminum sheets, while ACM (Aluminum Composite Material) panels consist of thin aluminum skins bonded to a core.
Key differences:
- Aluminum Plate:
- Solid metal construction
- Non-combustible material
- Higher durability and impact resistance
- ACM Panels:
- Lightweight and more economical
- Easier to fabricate
- Typically used in cost-sensitive projects
For projects where fire performance, robustness, and longevity are priorities, aluminum plate panels are the preferred solution.
3mm (1/8") thickness provides the ideal balance between:
- structural rigidity
- workability for fabrication
- weight efficiency
- cost control
It is the most commonly specified thickness for architectural façade applications.
There are two common fabrication approaches:
- Back-routed (V-grooved) folding, where material is removed from the back to create tight bends
- Formed full-thickness bending, where the panel is bent without removing material
Higher-quality fabrication typically prioritizes material continuity at the bend, which improves durability, edge integrity, and long-term performance.
The best coating depends on the project’s exposure and performance requirements:
- AAMA 2604 Powder Coating – good performance for standard exterior use
- AAMA 2605 Powder Coating – enhanced UV resistance and durability
- PVDF (Kynar 500® / Duranar®) – premium finish with superior color retention and long-term performance
For high-end or highly exposed façades, AAMA 2605 / PVDF coatings are typically recommended.
AAMA 2605 is the highest performance architectural coating standard, offering:
- superior UV resistance
- better color retention
- higher corrosion resistance
- longer service life
AAMA 2604 is still a high-performance option but is typically used where exposure conditions are less demanding.
Yes. Aluminum plate panels are commonly used in drained and back-ventilated rainscreen cladding systems.
These systems improve:
- moisture management
- durability of the wall assembly
- thermal performance
- long-term building envelope reliability
Yes. Aluminum plate is highly formable and can be fabricated into:
- curved panels
- column covers
- soffits and canopies
- custom façade geometries
This makes it an excellent choice for architectural feature elements and complex designs.
Aluminum plate panels are widely used in:
- commercial and office buildings
- high-rise residential projects
- institutional buildings
- retail and storefront façades
- canopies, soffits, and columns
- retrofit and over-cladding projects
They are especially suitable for projects requiring non-combustible exterior cladding.
Yes. Aluminum plate panels are heavier than ACM panels because they are made from solid aluminum.
However, they are still manageable within standard façade systems when properly designed with appropriate substructure and support systems.
Aluminum plate panels require minimal maintenance.
Periodic cleaning is typically sufficient to maintain appearance. High-performance coatings such as PVDF offer excellent resistance to fading, chalking, and corrosion, reducing long-term maintenance requirements.
Yes. Aluminum is 100% recyclable and can be reused without loss of performance.
This makes aluminum plate panels a strong option for:
- sustainable building design
- LEED-oriented projects
- long-life, low-maintenance façade systems
Aluminum plate panels perform very well in harsh climates like Ontario, including:
- freeze-thaw cycles
- UV exposure
- moisture and precipitation
- temperature fluctuations
Proper system design (movement joints, substructure, ventilation) ensures long-term performance in these conditions.
Key design considerations include:
- panel size and layout
- thermal expansion and movement
- substructure and attachment system
- air/water barrier integration
- ventilation cavity
- flashing and drainage
Working with an experienced contractor ensures the system is properly detailed and performs as intended.
Yes. CLADDERS™ provides:
- design-assist and value engineering
- fabrication and shop drawings
- finish specification guidance
- supply and professional installation
We serve Toronto, the GTA, and across Ontario, supporting architects, builders, and developers with complete cladding solutions.
The cost of 3mm aluminum plate panels in Toronto varies depending on several project-specific factors, including:
- panel size and complexity
- fabrication method and detailing
- coating system (powder coating vs PVDF)
- substructure and installation requirements
- site conditions and access
In general, aluminum plate panels are more expensive than ACM panels due to the use of solid material and more complex fabrication. However, they offer superior durability, non-combustibility, and long-term performance.
For accurate pricing, it is best to review drawings and project scope. At CLADDERS™, we provide detailed estimates and value engineering options to align with your budget.
Lead time for aluminum plate panels typically ranges from 4 to 8 weeks, depending on:
- project size and quantity
- fabrication complexity
- finish selection and coating process
- shop drawing approval timeline
Projects requiring custom fabrication, premium finishes (such as PVDF), or complex geometries may require additional time.
To avoid delays, it is recommended to engage early for design-assist, shop drawings, and material coordination. CLADDERS™ works closely with clients to streamline the process and meet project schedules.
Get Expert Aluminum Plate Cladding Support
Planning a project with 3mm aluminum plate panels?
Contact CLADDERS™ for expert guidance, accurate pricing, and high-quality fabrication and installation services across Toronto and Ontario.
Build with confidence. Build with CLADDERS™.
Technical Details:
| Material & Composition | Solid Aluminum Plate (No Core), Alloys: AA3003 / AA5005 / AA5052, Temper: H14 / H32 |
|---|---|
| Panel Thickness | 3mm (1/8") Standard, 2mm, 4mm, 6mm |
| Panel Type & Geometry | Cassette Panels, Flat Panels, Custom Fabricated Shapes, Curved / Column Covers |
| Panel Depth (Return) | 25mm, 38mm, 50mm, Custom |
| Fabrication Method | Formed Full-Thickness Return (Preferred), Back-Routed (V-Grooved) Folded Return |
| Corner & Edge Condition | Welded Corners, Mechanical Fastened, Closed Return, Open Return |
| Finish Technology | Powder Coating, PVDF (Kynar 500® / Duranar®), FEVE Coating, Anodized Aluminum |
| Coating Performance Standard | AMA 2603 (Interior), AAMA 2604 (High Performance), AAMA 2605 (Superior Performance) |
| Finish Appearance | Solid, Metallic, Mica, Textured, Matte, Satin, Gloss, Woodgrain |
| System Type | Rainscreen (Drained & Back-Ventilated), Cassette System, Direct-Fixed |
| Substructure & Support | Aluminum Sub-Girts, Galvanized Steel Sub-Girts, Hat Channel System, Thermal Clips |
| Performance Characteristics | Thermal Movement, Dimensional Stability, Structural Deflection Control |
| Fire & Code Consideration | Non-Combustible Material, Assembly-Dependent Fire Compliance |
| Applications | Façade Cladding, Soffits, Canopies, Column Covers, Feature Walls, Retrofit / Over-Cladding |
| Project Types | Commercial, Institutional, High-Rise Residential, Low-Rise Residential, Industrial, Retail, Mixed-Use, Hospitality |
Related products
-
Modern Rainscreen Cladding SystemsExterior Wall Assembly Systems: Weather Barriers, Cladding Support Systems & Insulation
-
- Modern Rainscreen Cladding Systems
Aluminum Siding Toronto
- Timber Cladding
Wood Siding, Faux Wood Siding & Timber Cladding in Toronto
1 review for Aluminum Plate Panels | Non-combustible Metal Panels Toronto
CLADDERS Support Team –
Hello everyone,
Here you can write reviews and comments for our Non-combustible Aluminum Plate Panels and professional installation services. Positive reviews from awesome clients would help our new customers feel confident about working with us as their trusted siding contractor. Thank you for taking the time to provide your highly appreciated feedback.
Kind Regards
